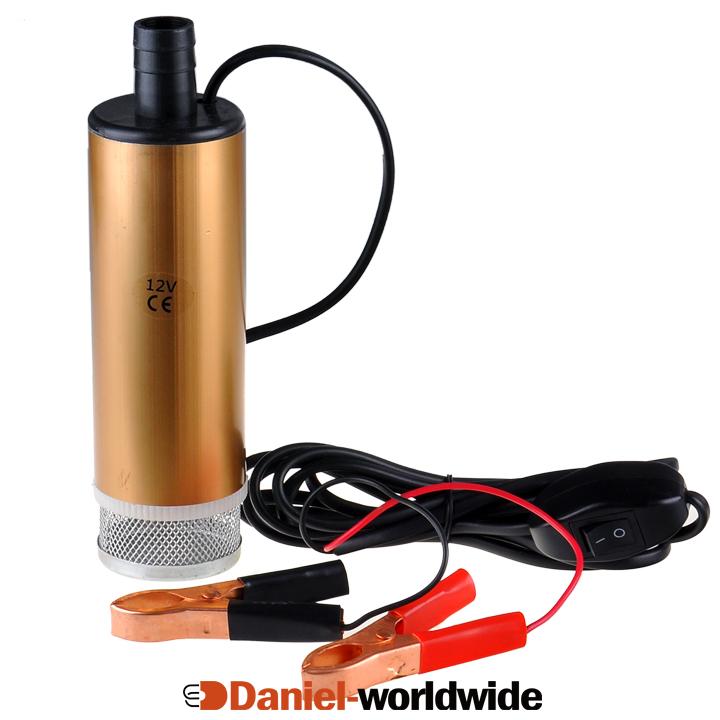

Net Weight: 520g

Color: Golden
Size: 17.5cmx5.1cm(7"x1.99")
Test Voltage :DC12V
Motor Racing Speed: 8500r/min
Motor racing current: 0.3A
Pump running current largest :6.4A
Flow rate: 30L/min
Pressure head: 3M
Absorption process :1.5M.
Cable Length: about 2.8M.
Remark:
1.When it works, first should put clean diesel pump in the middle of diesel bucket, does not allow empty load operation.
2.Pay attention to the load capacity of bucket when the pump is running, do not exceed load capacity line.
3. The pump is strictly prohibited pumping gasoline, alcohol and other flammable liquids
4.The oil hose is self-provided (Not included)
5.The pump mainly smoke diesel, flow rate:30L/min.
6. The outer diameter 51mm
7. The maximum oil-out diameter is 18mm
8.Don't make change the anode and cathode of battery clamp when clip the battery.
For use in rapid transferring with no spillage of diesel fuel, water and thin oils from storage tanks to various vehicles. Do not use the pump more than 20 minutes continuously.
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item.

We guarantee the style is the same as shown in the pictures, but not the same performance on different bodies as on the model. Thank you!
