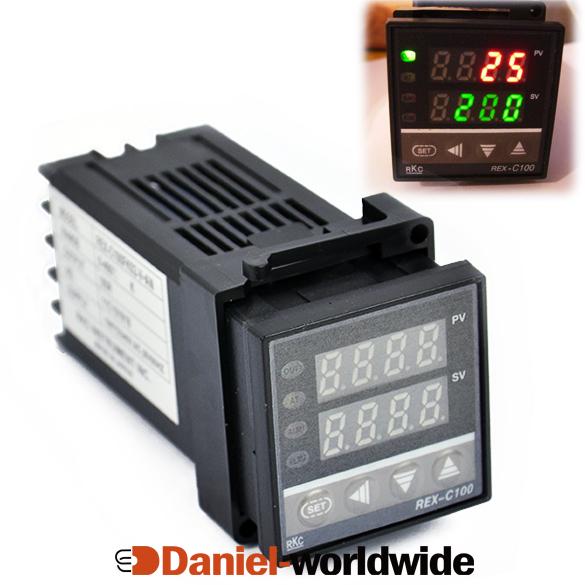

Net Weight: 142g

Color: Black
Size:10.6 x 4.8 x 4.8cm(LxWxH)
Detective temperature range：0 to 400℃
Output: SSR
Input:
Thermocouple (TC), Resistance Temperature Detect (RTD)
Standard Current and voltage signals
Display:
Process Value (PV), Setting Value (SV): -199~+199
Output (OUT1/ OUT2) Alarm (ALM1/ ALM2) Auto setting (AT)
Display: LED
Control way
PID Control (including ON/OFF, position PID and continuous PID)
Auto Setting Control
Accuracy:
Measurement Accuracy: 0.5%FS
Compensation error of cold terminal: 2°C(amend within 0~50℃ by soft)
Resolution: 14 bit
Sampling period: 0.5 Sec
Setting Range:
Setting value (SV): same range with PV
Proportional Band (P): 0~full range (ON/OFF Control when set to 0)
Integration Time (I): 0~3600 Sec (no integral action when set to 0)
Derivative Time (D): 0~3600 Sec (no derivative action when set to 0)
Proportional Period: 1~100 Sec
On-off control output hysteretic loop width:1~100℃ (or other PV units)
Control Output:
Currency output: DC 0~100Ma, 4~20mA (RL<500Ω)
Voltage output: DC 0-5V, 1-5V (RL>10K)
Relay output: Contact capacity: 250V AC 3A (resistive load)
Voltage Impulse output: 0-12V (applicable for solid state relay SSR)
Silicon Controlled Rectifier (SCR) output: zero-cross triggering or phase-shift triggering (resistive load)
Alarming function output: 2 groups output at most 12 modes
Output Contact Capacity: 250V AC 3A
Other Parameters:
Insulation resistance: >50MΩ (500V DC)
Insulation strength: 1500V AC/min
Power consumption:<10V
Service environment: 0~50°C, 30~85RH, no corrosive gas
